In order to save some material, as long as the shelf and bracket are installed correctly, the bracket is strong enough to be using the 1:2 ratio (depending on final depth & weight load).

Meaning that the brackets can be 1/2 the length of the shelf itself. But we always suggest to use 2 studs at a minimum.

No. 99% of the time, you will not be able to see underneath the shelf and the set screws. If that is still a concern, you can purchase a filler for the holes.

We generally recommend your shelf be at least 1.5" thick when using the Hovr Slim Bracket

This is because the bracket itself is 1 1/8" thick, so you will need at least 1/8" of additional material on the top and bottom of your shelf to house and conceal the bracket. Just remember to leave yourself that 1/4" of shelf thickness when selecting your material.

In general, it's best to leave at least 1/4" at the top and bottom of your shelf, since its far too easy to blow out 1/8" with the smallest movement. See below for a diagram of the recommended shelf thickness.

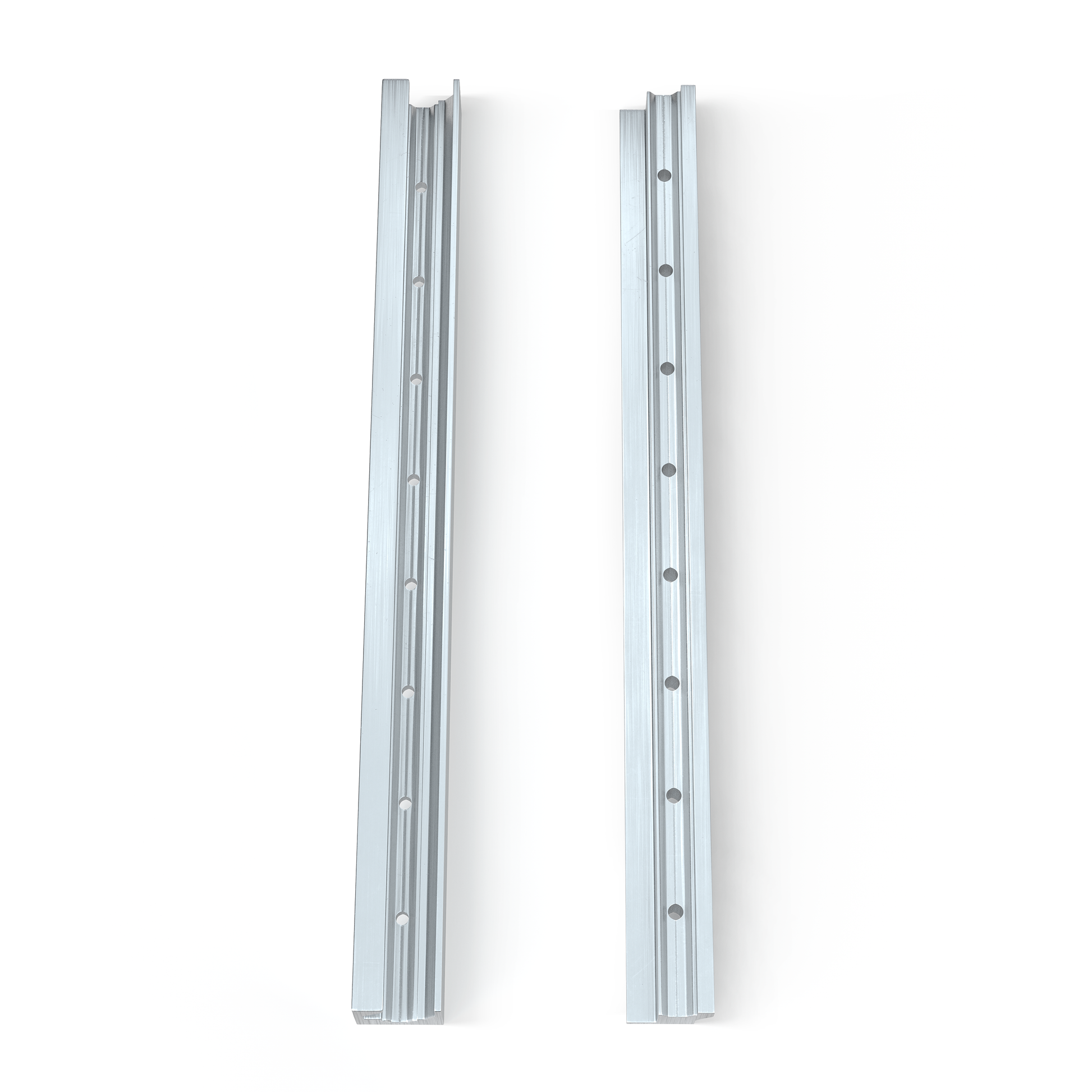

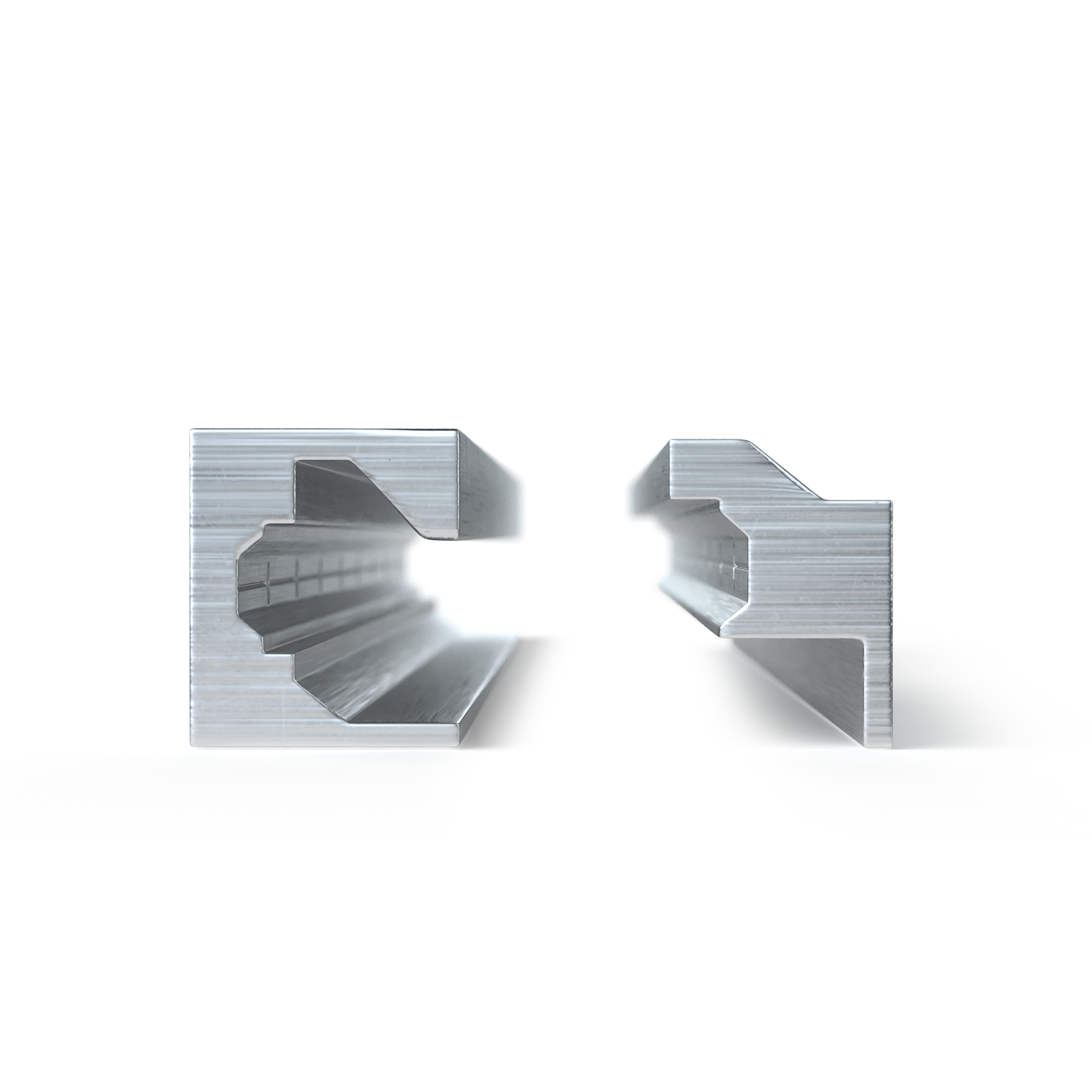

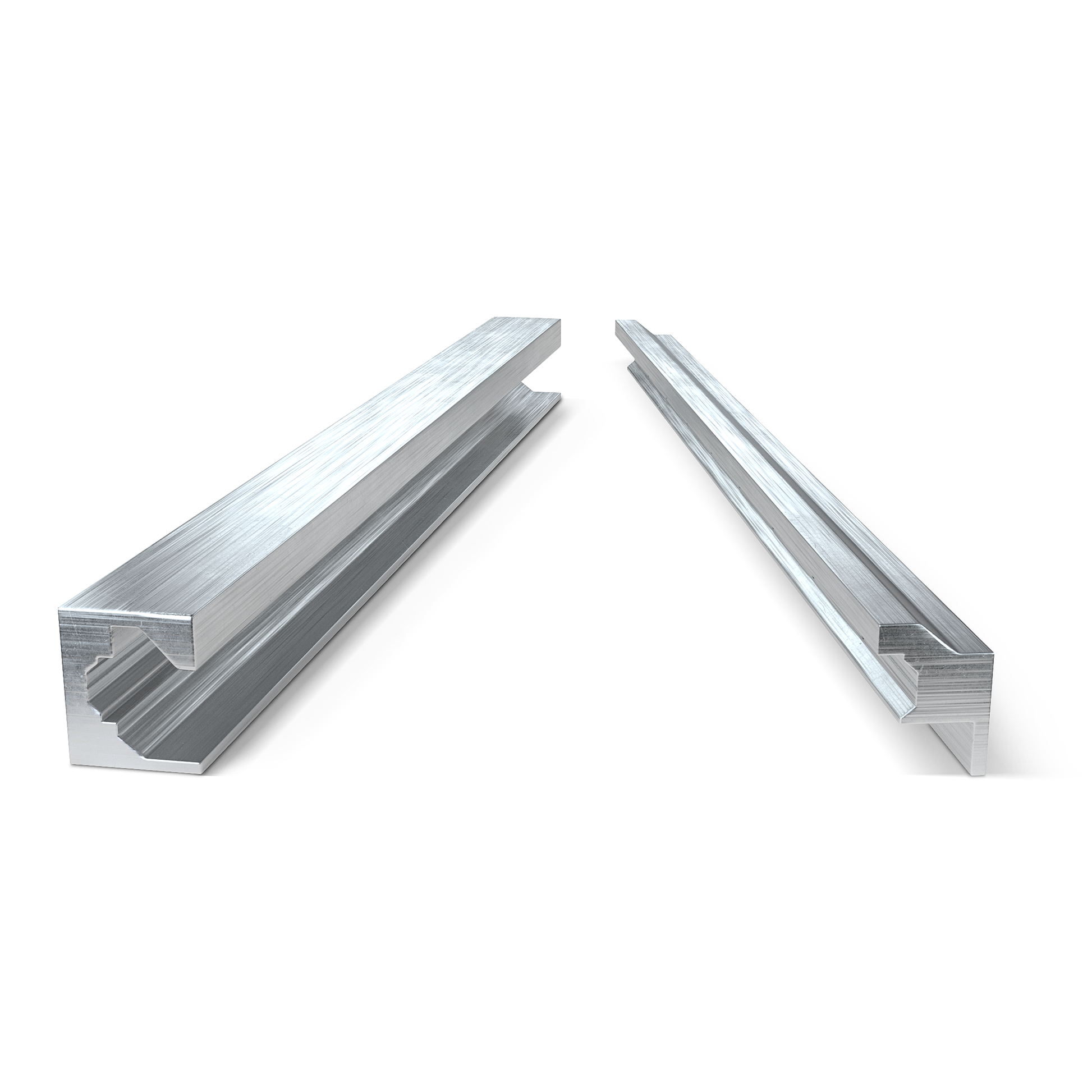

BRACKET DIMENSIONS

Height
• 1.125 Inches

Depth
• 0.878 Inches

Length
• 23.75 Inches (2 FT Brackets)
• 47 Inches (4 FT Brackets)
• 94 Inches (8 FT Brackets)

Mounting
• Male Bracket to Wall

Color/Finish
• Mat Aluminum Finish - Non-Coated

Gauge/Material
• 6063 T6 Aluminum

Weight Capacity
• 125bs Average at an 8 Inch Depth*

Download our installation guide here.

What's In The Box
• Hovr Bracket System
• 1 x Corresponding Alan Key

For each 2 FT
• 2 x 3.5” male bracket screws
• 6 x 2.5” female bracket screws
• 2 x 1/2” set screws

For each 4 FT
• 4 x 3.5” male bracket screws
• 12 x 2.5” female bracket screws
• 4 x 1/2” set screws

For each 8 FT
• 8 x 3.5” male bracket screws
• 24 x 2.5” female bracket screws
• 8 x 1/2” set screws

Each Order Comes With
• No more floating shelf sag
• 30 Day Money Back Guarantee
• All Required Screws
• Any length possible (you can combine brackets together)

• 17/64 HSS Steel Drill Bit (Set Screw Install)
• 5/16 #18 HSS H3 Tap Bit (Set Screw Install)
• Epoxy Glue (Glue Install Method)

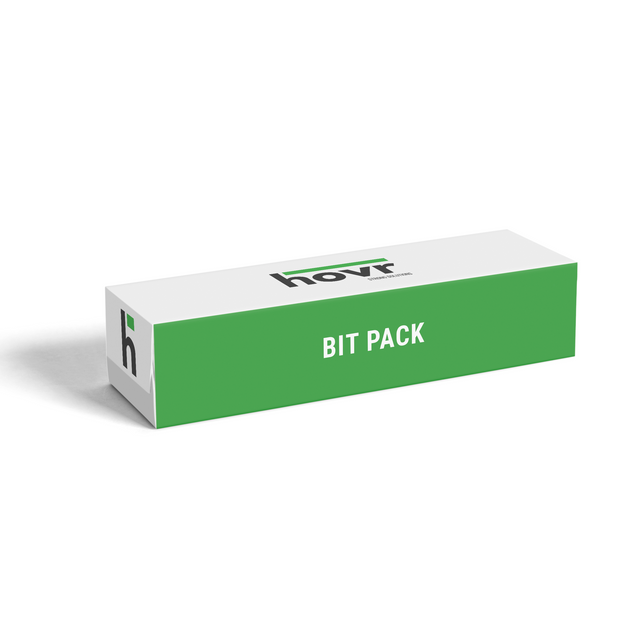

• The bits can be found in our Installation Bit Pack

We recommend you grab an Installation Bit Pack to ensure you have everything to go ahead with your installation.

It comes with the 17/64 HSS Steel Drill Bit & 5/16 #18 HSS H3 BTM Tap Bit
